The backbone of a building's audio: paging, background music, scheduled programmes, emergency announcements and evacuation. Thinuna offers three architectures — pure IP network, bus-based matrix and conventional 100V line — and the right choice depends on the size of the site, the cabling already in place and how much control the operator needs.
IP-9600 III network public address system (client–server)
A fully digital broadcast system that uses the IP network as its transmission medium, removing the distance limits and signal degradation of long analogue runs. Any point with an Ethernet port becomes a broadcast zone. Terminals self-diagnose network faults and report status to the server, and the system supports PoE, SIP and ONVIF.
Suited to campuses, multi-building estates, schools, hospitals, transport facilities and any site where zones are numerous, dispersed or likely to expand.
Servers, control and network equipment: IP-9600 III Series Network PA System · IP-9601SX III Network Audio Server · IP-9609SM III Network PA System Management Centre software · IP-9619AO III Network Audio Expander · IP-9624AD III Network Mixer · IP-9632EM III Network Control Input Unit · IP-9608SP III Network Power Sequencer · IP-9633RM III Network Microphone Workstation · IP-9611AO-B-T III Network Audio Terminal · IP-9614AO III Network Audio Box · IP-9622MB III Network Multifunctional Terminal · IP-9636TB III One-button Alarm (Help) Intercom Terminal. Network power amplifiers: IP-2150AP III / 2300AP III / 2450AP III / 2600AP III · IP-2150AP III SC / 2300AP III SC / 2450AP III SC / 2600AP III SC dual-channel digital · IP-4150AP III SC / 4300AP III SC / 4450AP III SC / 4600AP III SC four-channel digital · IP-300AP III SC / 450AP III SC / 600AP III SC single-channel digital · IP-4300AP III AI / 4600AP III AI intelligent amplifier · IP-80AP / 120AP / 180AP / 240AP III TA single-channel. Network speakers and terminals: IP-9614AO III M / S Network Speaker · IP-9614AOB III WM Network Bluetooth Speaker · IP-9614AOBT III WM Network Bluetooth Backup Speaker · IP-9614AO III WS Network Wooden Slave Speaker · IP-25WS III wall-mounted main speaker and IP-25WS III S secondary speaker · IP-40WS III / 40WSB III / 40WSBT III all-weather wall-mounted · IP-30QS III / IP-60QS III all-weather multifunctional · IP-20SK III, IP-40SK III and IP-80SK III network column speakers · IP-30HS III and IP-50HS III network horn speakers · IP-10CS III network coaxial ceiling speaker.
IP-9600 B/S network public address system (browser–server)
The browser-based architecture of the same platform, managed through a web interface with account-based login and platform synchronisation, suited to clients who want central management across sites without dedicated client software on every workstation.
IP-9601SX-BS Network Broadcast Server · IP-9633RM-BS touch-screen microphone workstation · IP-9635RM-BS visual touch-screen microphone workstation · IP-9618AO-BS network audio encoder · IP-9619AO-BS rack-mounted network audio decoder · IP-9632EM-BS 32-channel network fire matrix · IP-9636TB-BS, IP-9637TB-BS and IP-9638TB-BS alarm and intercom terminals · IP-300AP / 450AP / 600AP BS single-channel digital amplifier · IP-80AP / 120AP / 180AP / 240AP BS integrated network amplifier.
IP-9600 first-generation equipment
Still supplied for expansion and replacement on existing installations:
IP-9601SX IP Network Server · IP-9618AO network pre-amplifier · IP-9618AOZ8 partition controller · IP-9619AO front microphone controller · IP-9621EM alarm matrix · IP-9623EP switching power · IP-9625AD audio matrix · IP-9626RC remote controller · IP-9632EM 32-channel alarm matrix · IP-9633RM II paging intercom console · IP-80 / 300 / 500AP and IP-80AP / 120AP / 240AP / 300AP / 400AP / 500AP / 600AP network amplifiers · IP-9609SM management software · AutoPlay TTS software with automatic speech synthesis.
PX-3000 20-bus public address and voice alarm system
A bus-based digital broadcast and commercial audio system that carries audio and control signals over a single bus, reducing cabling against a conventional matrix while retaining zone-level control. Supplied with the 20BUS Assistant configuration software.
PP-6284 II 8x4 mixer amplifier and audio matrix
An eight-input, four-output mixing audio matrix with digital signal control and multimedia playback. Any of eight sources can be freely assigned and mixed to any of four outputs — the practical answer for hotels, restaurants, offices and retail where a handful of zones each need a different source.
PP-6284 II multifunctional matrix host · PP-6284 II / 4150P / 4300P / 4450P / 4600P constant-voltage power amplifier · PP-6284 8x4 mixing audio matrix · RM-6284 II and RM-6284 four-partition remote paging microphones · LM-6284 II and LM-6284 remote audio input modules.
VX-8000 voice alarm system and PX-2000 8x8 paging matrix
Dedicated voice alarm and paging matrix platforms for life-safety and large-zone paging applications, configured through the DCS-8001 4BUS control software. Speak to us about component selection for a specific evacuation scheme.
AX series voice alarm amplifier
AX-240M and AX-480M voice alarm mixer amplifiers providing six-zone background music and alarm capability at 240W and 480W, with the AX-06RM six-zone desktop paging microphone offering free zone selection and an all-call function.
100V and 70V PA and mixer amplifiers
Conventional constant-voltage amplification for straightforward installations, and Class D digital amplification where efficiency and heat matter. The DA series reaches 80 to 90 per cent efficiency, which the manufacturer states reduces consumption by more than 60 per cent against an equivalent analogue amplifier — significant on a Nigerian site running on generator or inverter.
TA-50D II mini mixing amplifier · TA-80D II / 120D II / 180D II / 240D II · TA-80E / 120E / 180E / 240E / 300E / 400E / 500E / 600E · CTA-80D II / 120D II / 180D II / 240D II five-zone · VTA-240F II / 360F II / 480F II / 600F II six-zone · DPA-240 / 360 / 480 / 600 with built-in sources and scheduler · DA-1300H / 1600H, DA-2300H / 2600H and DA-4300H / 4600H constant-voltage amplifiers · DA-1300H EU / 1600H EU, DA-2150H EU / 2300H EU / 2600H EU and DA-4150H EU / 4300H EU / 4600H EU.
Audio sources and accessories

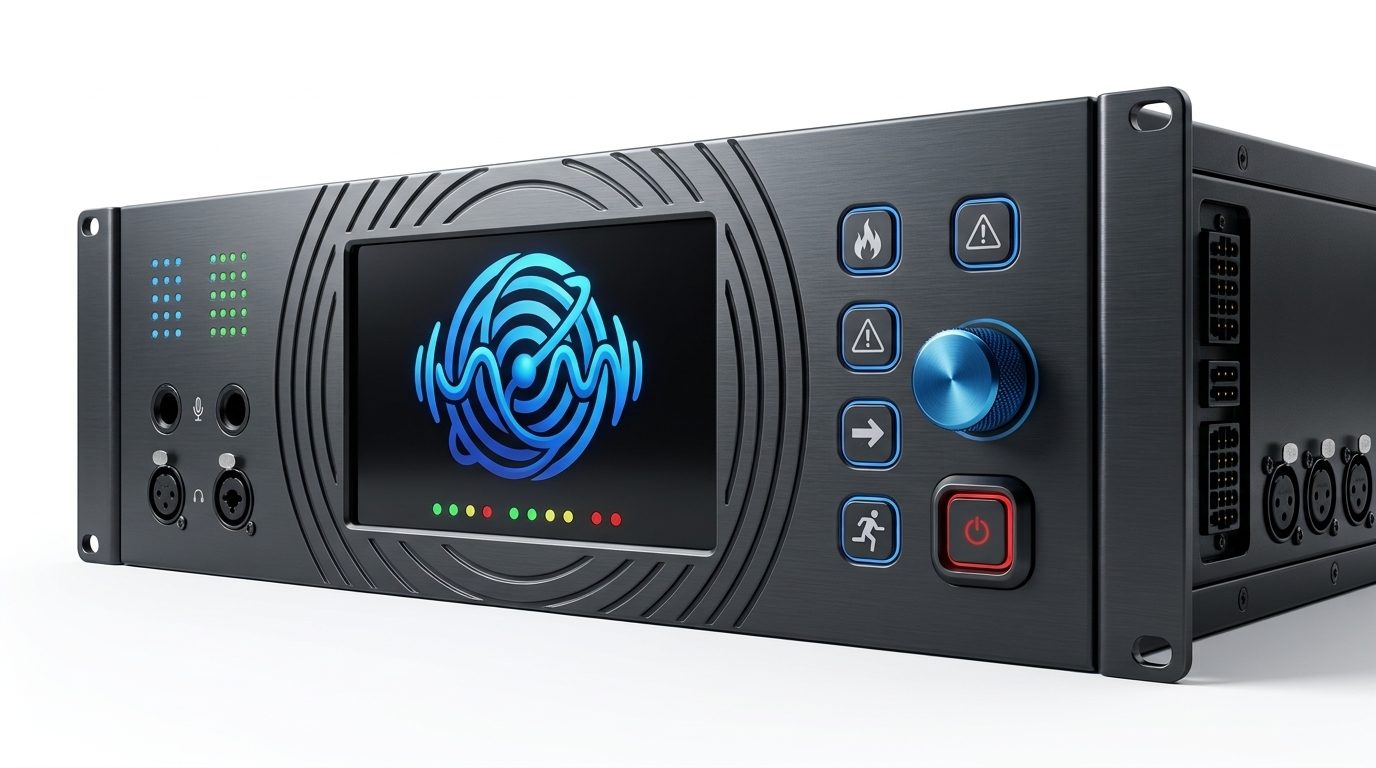

TN-6202 II AM/FM digital tuner · TN-6202U recorder and player with FM tuner, USB and Bluetooth · CD-6201A dual-channel multimedia player · AP-6206 MP3 player and tuner · VP-6222A paging voice controller with built-in fire alarm siren and digital voice recording · HM-60T in-wall Bluetooth and volume panel for hotel rooms.
